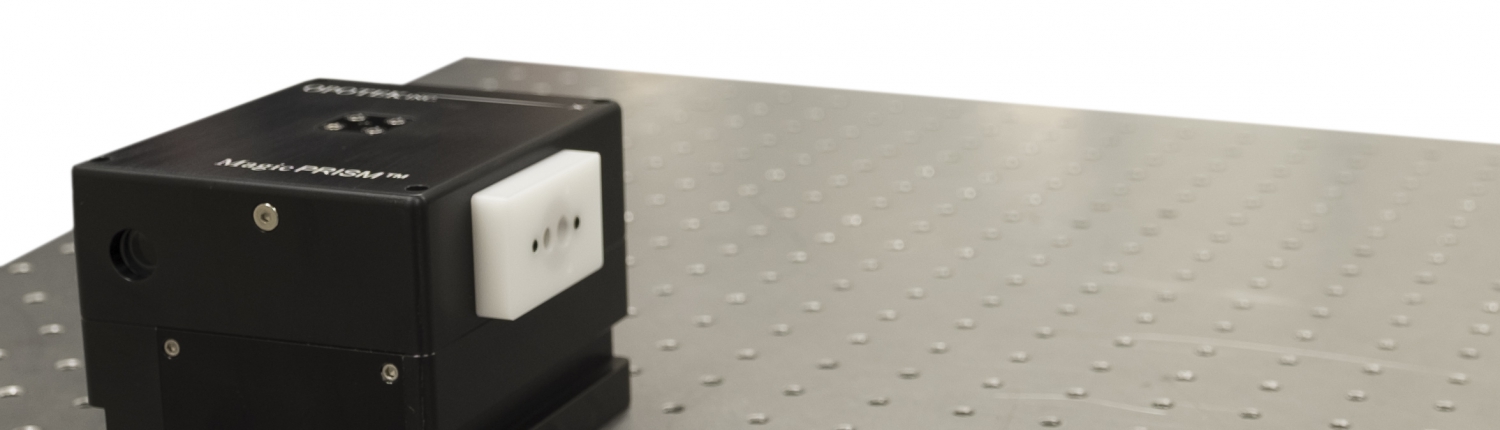

MagicPRISM OPO
The MagicPRISM is a compact, motorized optical parametric oscillator (OPO) module with a conversion efficiency as high as forty percent. The Ring-Cavity design is configured such that the pump and the OPO beams travel in the same direction. Two nonlinear crystals are positioned on a computer controlled, motorized rotation stage to achieve tuning. The pump beam is coupled into the Ring-Cavity and the signal/idler beams are coupled out of the ring cavity by a coated beam splitter. These design attributes produce highly stable and efficient output. The MagicPRISM OPO is offered as a stand-alone accessory to be pumped by the end-user’s laser.
Product Features
- Stand-alone OPO module, compatible with most nanosecond Nd:YAG pump lasers
- Computer controlled tuning via control software/software development kit (SDK)
- Shipped with protective hard shell casing (PHSC)
- Requires ALIGNMENT KIT (AK) or QSMART ADAPTER (QSA) for alignment/mounting
- WARRANTY: One year on mechanical, electronics, and labor
Product Options
- Protective Hard Shell Cases (PHSC)
Includes two protective hard cases with custom foam padding. - IDLER Access (ID)
Extends tuning range to include 740 – 1200 nm (VIS model) or 1200 – 1700 nm (NIR model)
Decreases SIGNAL performance by 10%
- Alignment Kit (AK)
Stand-alone alignment kit for MagicPRISM pump beam.
End-user alignable. Does not include turning mirrors.
Product Specifications
| Tuning Range SIGNAL | 690 – 950 nm |
| Tuning Range IDLER (optional) | 1200 – 1700 nm |
| Peak Energy (Standard) | 50 mJ @750 nm with pump energy of 140 mJ @ 532 nm |
| Beam Diameter (standard) | 6 mm |
| Divergence | 10 mrad |
| Polarization | Horizontal |
| Pump Laser Requirements | |
| Pump Wavelength | 532 nm |
| Max Pump Pulse Energy | 140 mJ |
| Pulse Duration | 6-8 ns |
| Beam Divergence | < 0.5 mrad |
| Linewidth | 30-80 cm-1 |
| Pulse Pulse Stability | < 2% |
| Pulse Repetition Rate | 20 |
| Polarization | Vertical |
| Tuning Range SIGNAL | 420 – 680 nm |
| Tuning Range IDLER (optional) | 740 – 1200 nm |
| Peak Energy | 30 mJ @ 450 nm with pump energy of 100 mJ @ 355 nm |
| Beam Diameter (standard) | 6 mm |
| Divergence | 10 mrad |
| Polarization | Horizontal |
| Pump Laser Requirements | |
| Pump Wavelength | 355 nm |
| Max Pump Pulse Energy | 100 mJ |
| Pulse Duration | 6-8 ns |
| Beam Divergence | < 0.5 mrad |
| Linewidth | 5-80 cm-1 |
| Pulse Pulse Stability | < 4% |
| Pulse Repetition Rate | 10 |
| Polarization | Vertical |
Additional Information
TUNING RANGE
420 – 680 nm (VIS model) + 740 – 1200 nm (w/ IDLER option)
690 – 950 nm (NIR model) + 1200 – 1700 nm (w/ IDLER option)
PEAK OPO ENERGY
40 mJ @ 450 nm (VIS model)
50 mJ @ 750 nm (NIR Model)
APPLICATIONS
Photoacoustic Imaging
Spectroscopy
Lidar
DATASHEET
Click here to download
