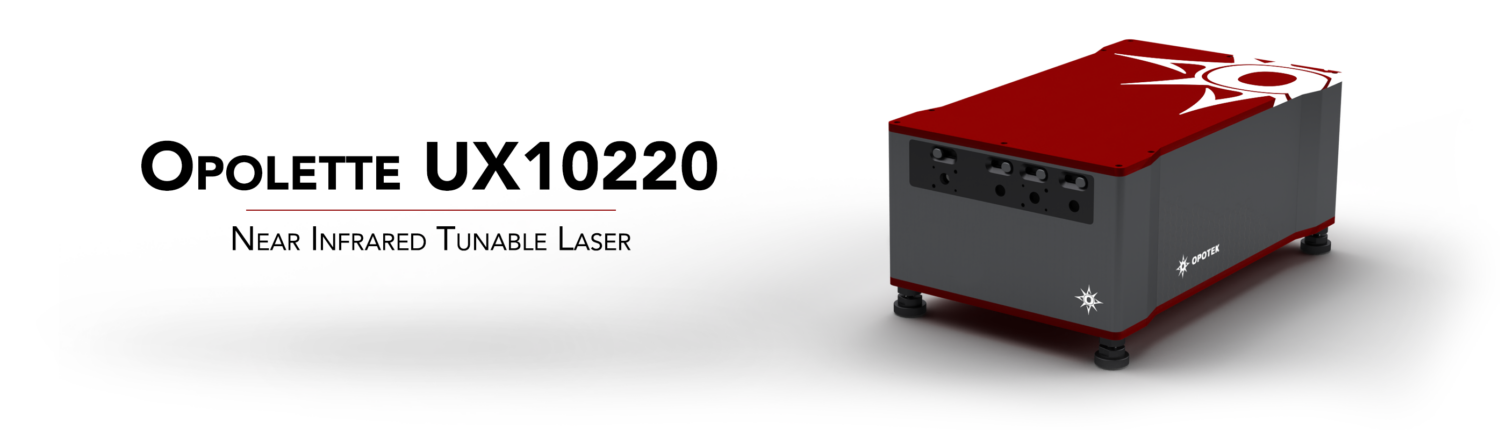

Opolette UX10220

The Opolette UX10220 tunable laser utilizes optical parametric oscillator (OPO) technology to generate wavelengths over a broad range in the NIR. Designed for portability, the Opolette UX is end user installable and the alignment can be verified if relocated.  All tunable beams exit the system from the same port resulting in one beam path to the end-user’s application. Wavelength tuning is motorized and computer controlled.

Product Features

  • Integrated pump laser with quick connect cables
  • Flashlamp based pump laser with minimal maintenance
  • End-user replaceable flashlamp (50 million shot lifetime) and DI cartridge
  • Flashlamp and/or Q-Switch external triggering
  • Computer controlled via a single USB connection
  • Control software/software development kit (SDK) included
  • Programmable scans
  • No factory installation required
  • End user accessible alignment verification
  • Temperature controlled, motorized Harmonic
  • All tunable wavelengths output from a single port
  • Access to residual pump laser wavelengths (1064, and 532nm)
  • All tunable wavelengths accessible without any manual configuration changes
  • WARRANTY: One year on the entire system. Includes all options except fibers

Product Options

  • External Motorized Variable Attenuator (eMVA)
  • Externally mounted and computer controlled. End user removable/installable. Reduces OPO by 10-15% when installed. Can only be used with visible and near-infrared wavelengths.
  • Fiber Delivery Kit (FD)
    End user changeable output from free space to fiber output. Standard fiber is 1mm core, 2m long, NA=0.22, SMA connector. Fiber coupler assembly installed directly onto the front of the system.
  • Wavemeter (WM)
    Real-time wavelength monitoring and harmonic auto-optimization
  • Extended Warranty (EXW)
    Extends full system warranty for one additional year, for a total of two years. Includes all options except for fibers.

Product Specifications

Opolette UX10220

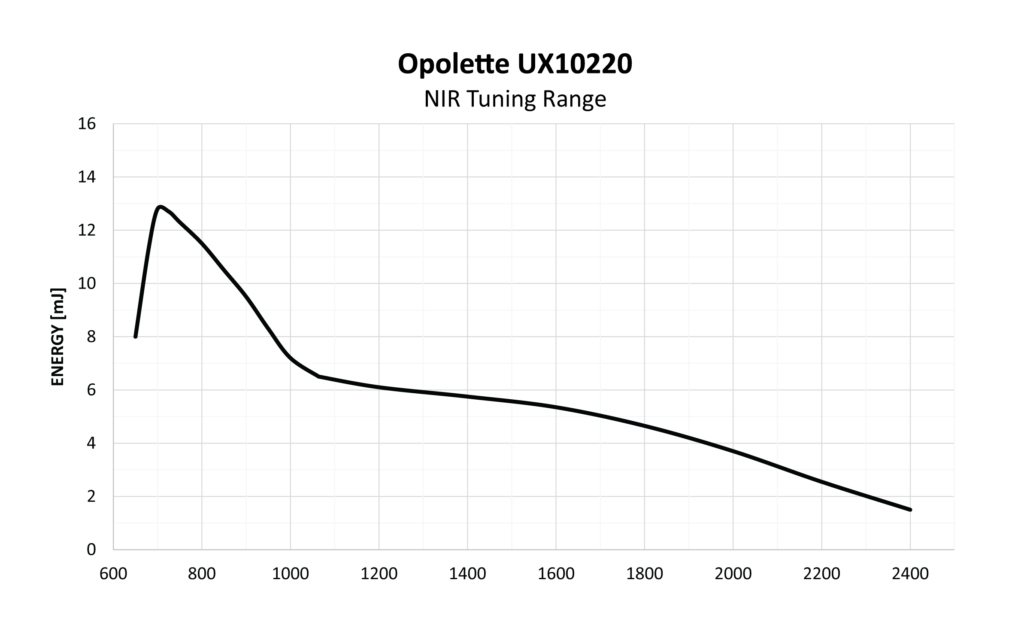

Tuning Range 650 – 2400 nm
Peak Energy 12 mJ @ 750 nm
Repetition Rate 20 Hz
Pulse Width 5 – 7 ns
Beam Diameter 4 mm
Divergence 2 mrad

Additional Information

TUNING RANGE
650 – 2400 nm

PEAK OPO ENERGY
12 mJ @ 750 nm

APPLICATIONS
Spectroscopy
