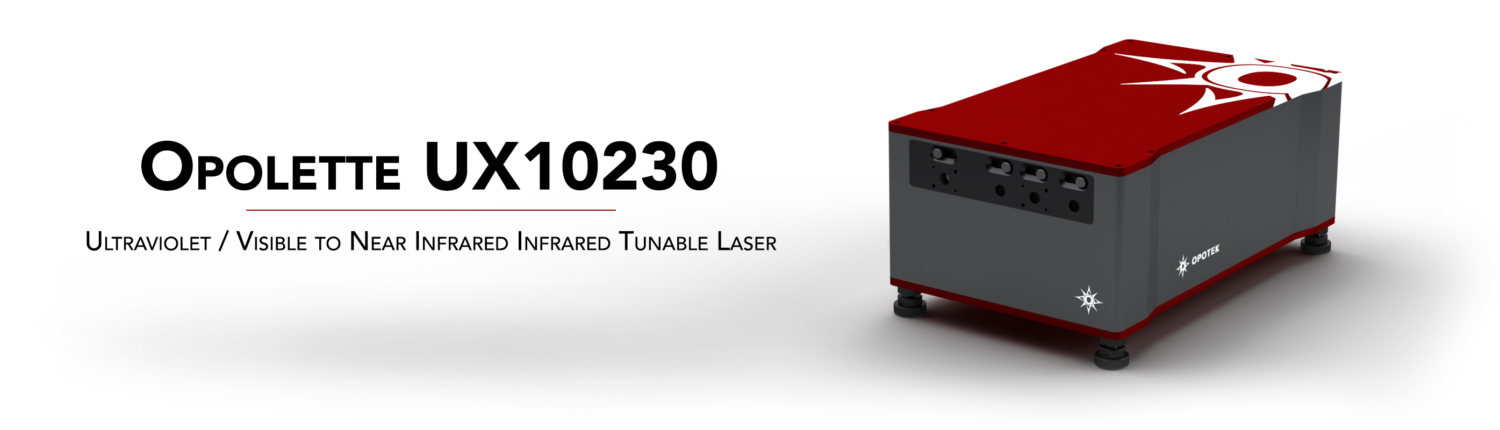

Opolette UX10230

The Opolette UX10230 tunable laser utilizes optical parametric oscillator (OPO) technology to generate wavelengths over a broad range in the UV, VIS and IR. Designed for portability, the Opolette UX is end user installable and the alignment can be verified if relocated.  All tunable beams exit the system from the same port resulting in one beam path to the end-user’s application. Wavelength tuning is motorized and computer controlled.

Product Features

  • Integrated pump laser with quick connect cables
  • Flashlamp based pump laser with minimal maintenance
  • End-user replaceable flashlamp (50 million shot lifetime) and DI cartridge
  • Flashlamp and/or Q-Switch external triggering
  • Computer controlled via a single USB connection
  • Control software/software development kit (SDK) included
  • Programmable scans
  • No factory installation required
  • End user accessible alignment verification
  • Temperature controlled, motorized Harmonic(s)
  • All tunable wavelengths output from a single port
  • Access to residual pump laser wavelengths (1064, 532nm, and 355nm)
  • All tunable wavelengths accessible without any manual configuration changes
  • WARRANTY: One year on the entire system. Includes all options except fibers

Product Options

  • Extended UV Tuning Range (UV)
    Extends tuning range to 210 – 410 nm. Decreases OPO by about 20%
  • External Motorized Variable Attenuator (eMVA)
    Externally mounted and computer controlled. End user removable/installable. Reduces OPO by 10-15% when installed. Can only be used with visible and near-infrared wavelengths.
  • Fiber Delivery Kit (FD)
    End user changeable output from free space to fiber output. Standard fiber is 1mm core, 2m long, NA=0.22, SMA connector. Fiber coupler assembly installed directly onto the front of the system.
  • Wavemeter (WM)
    Real-time wavelength monitoring and harmonic auto-optimization
  • Extended Warranty (EXW)
    Extends full system warranty for one additional year, for a total of two years. Includes all options except for fibers.

Product Specifications

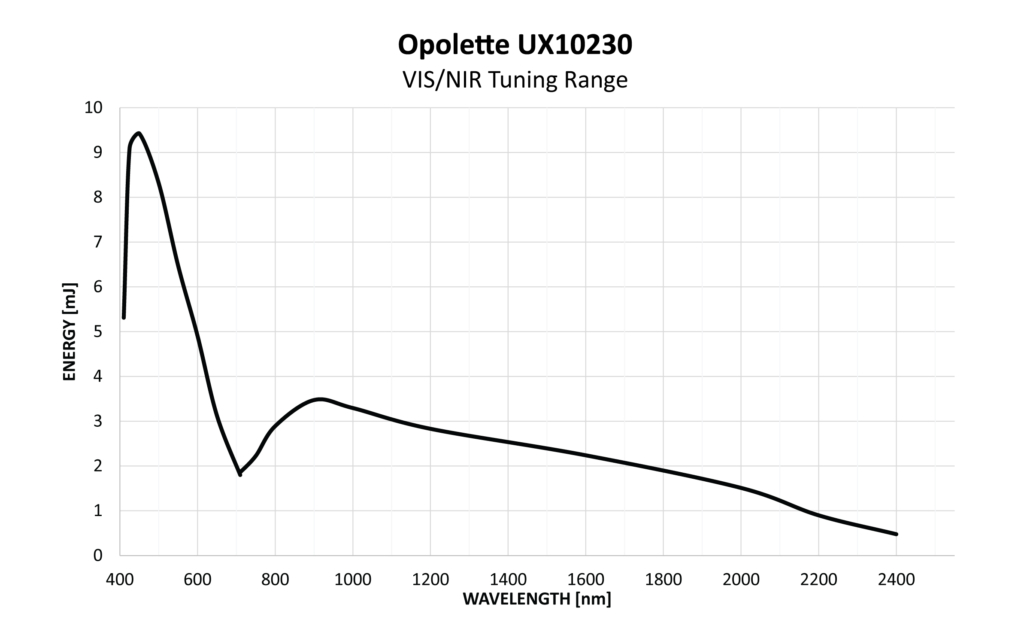

Opolette UX10230
Tuning Range 410 – 2400 nm
Peak Energy 9 mJ @ 450 nm
Repetition Rate 20 Hz
Pulse Width 5 – 7 ns
Beam Diameter 4 mm
Divergence 2 mrad

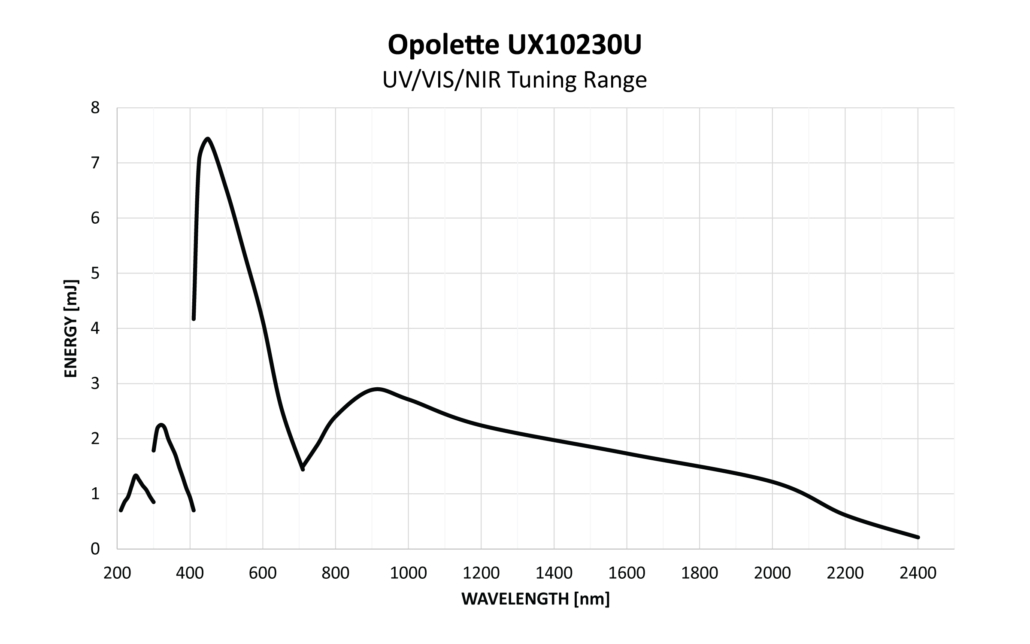

Opolette UX10230U
Tuning Range 210 – 2400 nm
Peak Energy 2.2 mJ @ 320 nm
8.0 mJ @ 450 nm
Repetition Rate 20 Hz
Pulse Width 5 – 7 ns
Beam Diameter 4 mm
Divergence 2 mrad

Additional Information

TUNING RANGE
210 – 2400 nm (with UV option)
410 – 2400 nm

PEAK OPO ENERGY
2 mJ @ 320 nm (UV option)
9 mJ @ 450 nm

APPLICATIONS
Spectroscopy
