Opolucis C3020
The Opolucis C tunable laser series utilizes optical parametric oscillator and diode-pumped solid state (DPSS) technology to generate wavelengths over a broad range in the UV, VIS and IR at high repetition rates. Integration of system components into one compact unit increases ruggedness, minimizes misalignment and allows the user to reposition the system. Included verification hardware enables the user to confirm that beam paths are preserved after shipment or relocation; no expensive or time-intensive installation required. Sealed modules protect sensitive optical materials from the environment. All tunable beams exit the system from the same port. Wavelength tuning is motorized and computer-controlled.
Product Features
- Fully integrated optical layout
- New more advanced wavelength tuning mechanism
- DPSS based pump laser with minimal maintenance
- Diode and/or Q-Switch triggering
- Computer controlled via a single USB connection
- Control software and software development kit (SDK)
- Programmable scans
- No factory installation required
- End user accessible alignment verification
- Temperature controlled, motorized Harmonics
- All tunable wavelengths output from a single port and accessible without any manual configuration changes
- Access to fundamental and pump beams (1064nm, 532nm, and/or 355nm)
- Fiber bundle compatible output ports
Product Options
- Extended Tuning Range
- Extends the tuning range to 330-2400 nm (C3020D).
- Motorized Variable Attenuator
- Mounted, motorized and computer-controlled Glan Laser polarizer that allows continuously attenuation from 100% down to 1% while maintaining maximum pulse to pulse stability. End user removable/installable. Reduces max pulse energy by 10-15% when installed.
- Integrated Fiber Bundle
- Fiber bundle is installed directly into the auto-locking OPO output port. For optimal performance, an internal lens is installed inside the system. The lens can be removed by the end user for free space access. Typical transmission is 60-70% at shorter wavelengths and 40-60% at longer wavelengths. Fiber bundles are 2.0 m long with 3.0-5.0 mm input/output diameters and numerical aperture of 0.37.
- Wavemeter
- Integrated Wavemeter for real-time monitoring of wavelengths (some wavelengths through interpolation) and enabling harmonic auto optimization from near peak energies. Patch fiber and optics included to connect laserhead to Wavemeter.
- Fast Tuning
- Change tuning speed from seconds to < 50 ms between any wavelength in the Signal or Idler.
- Extended Warranty
- Extends full system warranty for one additional year, for a total of two years. Includes all options except for fibers.
Product Specifications

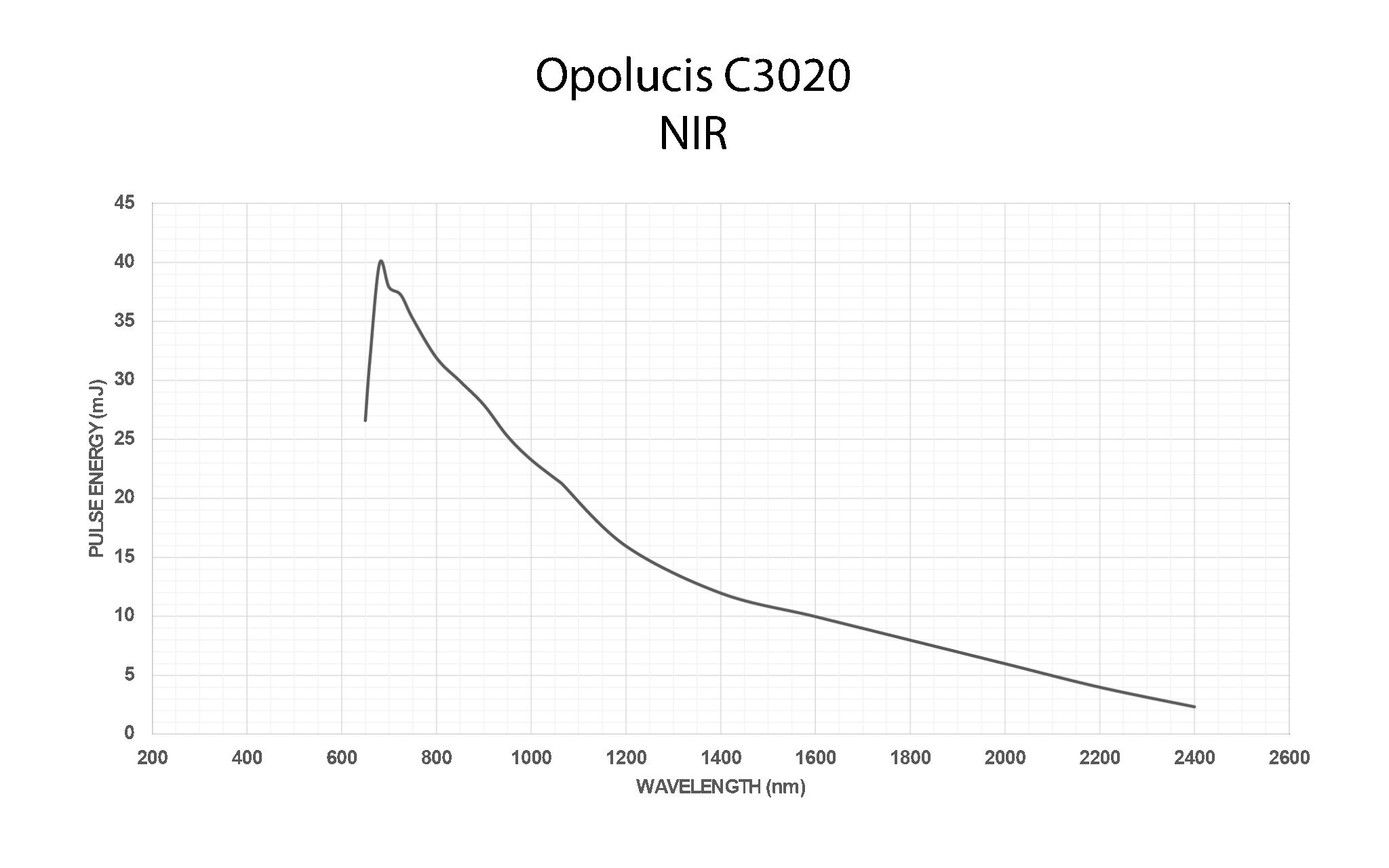

Tuning Range | 650 – 2400 nm |
Peak Energy | 40 mJ @ 750 nm |
Repetition Rate | 100 Hz |
Pulse Width | 10 ns |
Beam Diameter | 6 mm |
Divergence | < 2 mrad |

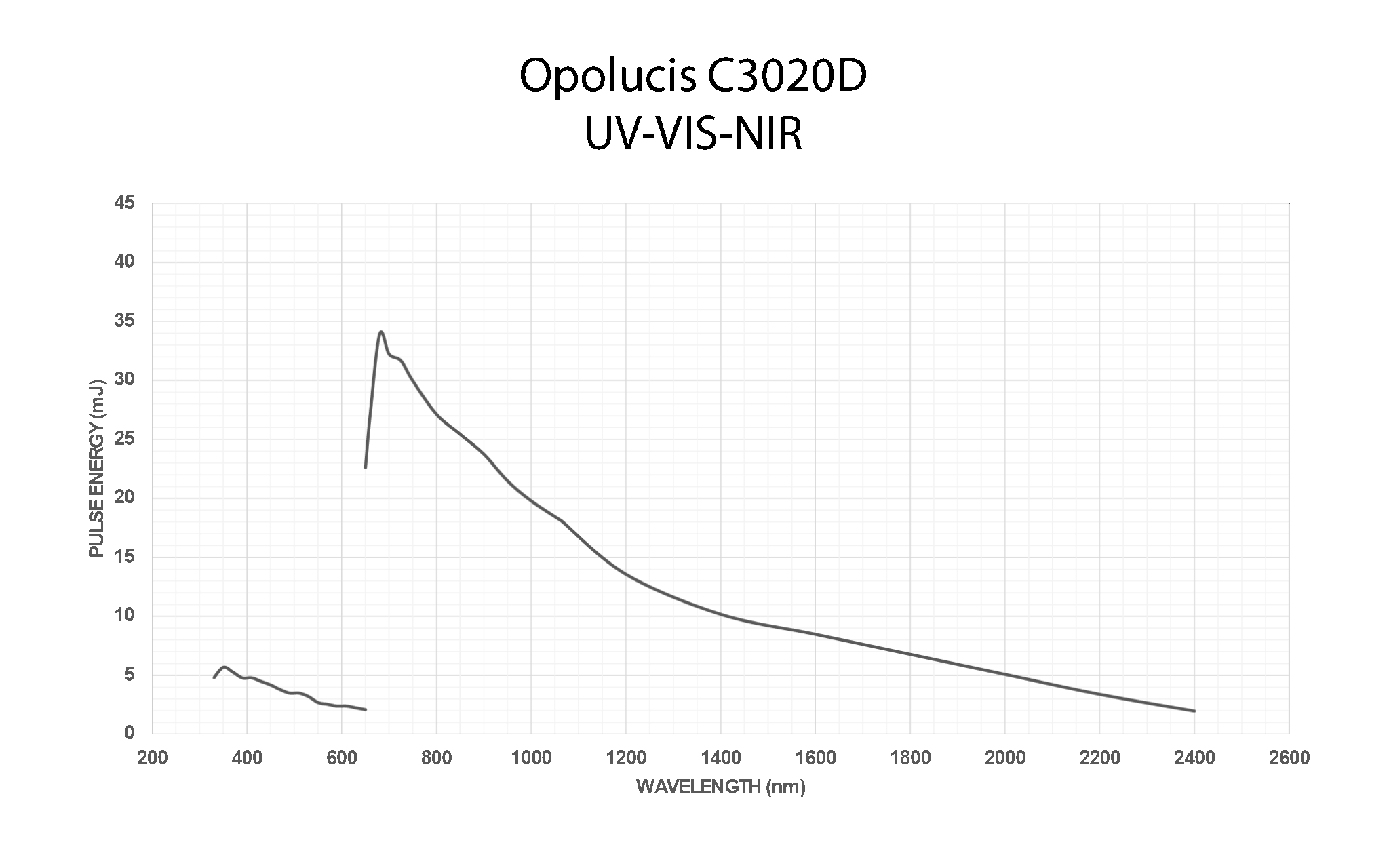

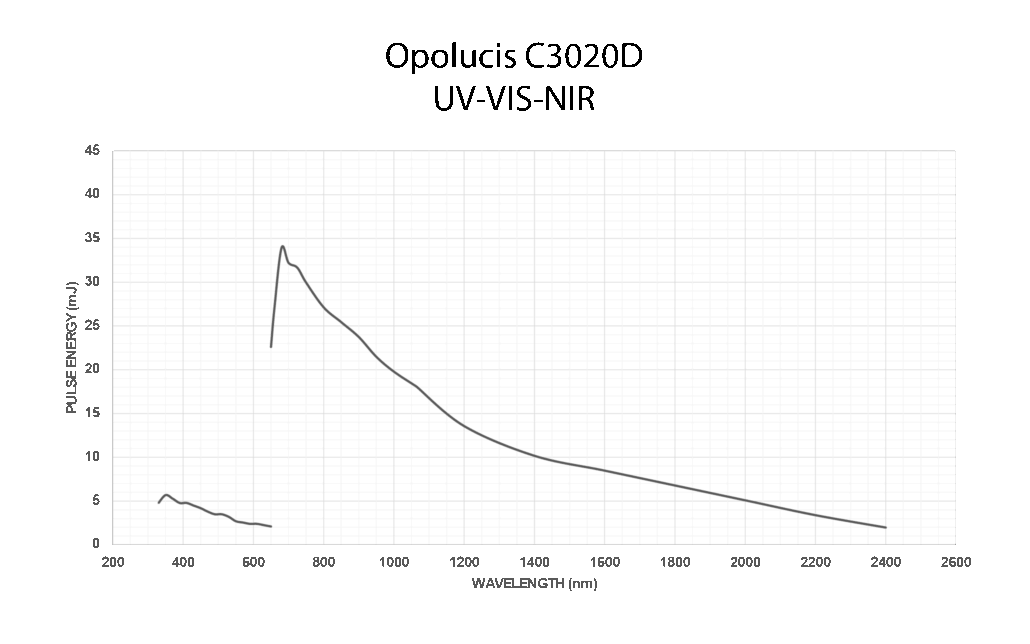

Tuning Range | 330 – 2400 nm |
Peak Energy | 35 mJ @ 750 nm
6 mJ @ 330 nm |
Repetition Rate | 100 Hz |
Pulse Width | 10 ns |
Beam Diameter | 6 mm |
Divergence | < 2 mrad |
Additional Information
TUNING RANGE
330-2400 nm
PEAK OPO ENERGY
C3020
40 mJ @ 750 nm
C3020D
35 mJ @ 750 nm
6 mJ @ 330 nm
